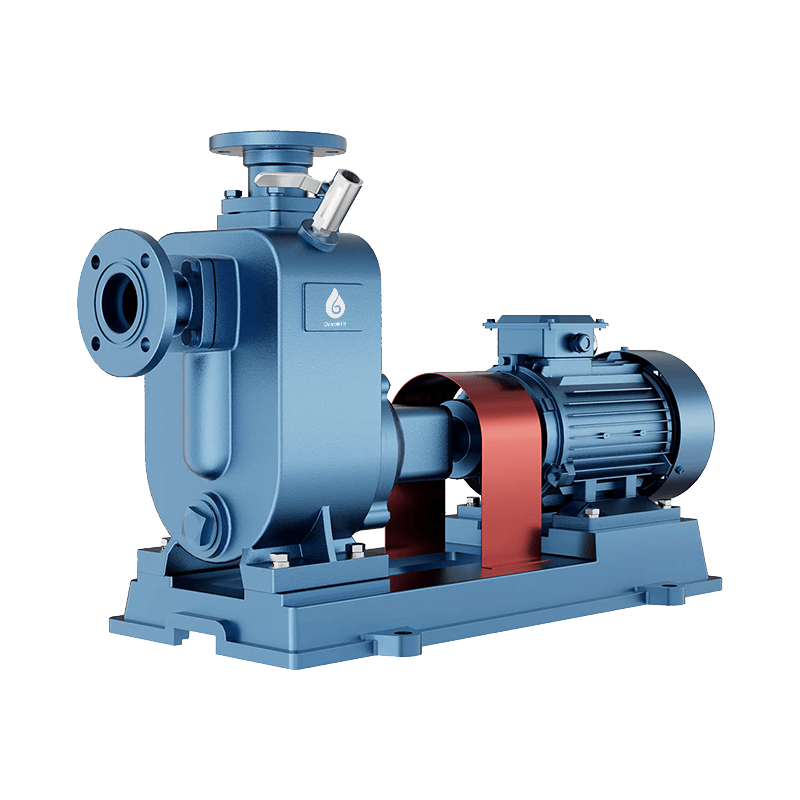

ZW Split-Type Self-Priming Sewage Pump
DESCRIPTION
This series of pumps is an ideal and efficient new type of energy-saving domestic pump, widely used for domestic water supply, well water lifting, tap water pressure boosting, garden irrigation, vegetable greenhouse watering, and especially suitable for boosting water pressure in water heater pipelines where water pressure is insufficient, preventing the occurrence of sudden temperature changes in the water supply.
flow：8~800m³/h
Liquid temperature: -0°C~+80°C
Head Range：15~80m
voltage：380V
Voltage can be customized based
on your request
Material: Cast iron/Stainless Steel
| Type | Caliber(mm) | Flow | Head | Suction stroke | Power | Synchronous speed | Imbibition property | Efficiency | net positive suction head | Head range of use | Weight | |
| inlet | outlet | (m³/h) | (m) | (m) | (KW) | (r/min) | (min/5m） | (%) | (m) | (m) | (kg) | |
| ZW25-8-15 | 25 | 25 | 8 | 15 | 5.5 | 1.5 | 2900 | 3 | 45 | 2.0 | 10-15 | 85 |
| ZW25-8-30 | 25 | 25 | 8 | 30 | 5.5 | 3 | 2900 | 3 | 45 | 2.0 | 24-30 | 100 |
| ZW32-5-20 | 32 | 32 | 5 | 20 | 5.5 | 2.2 | 2900 | 3 | 45 | 2.5 | 15-20 | 85 |
| ZW32-10-20 | 32 | 32 | 10 | 20 | 5.5 | 2.2 | 2900 | 3 | 45 | 2.5 | 15-20 | 85 |
| ZW32-9-30 | 40 | 40 | 10 | 20 | 5.5 | 2.2 | 2900 | 3 | 48 | 2.5 | 24-30 | 100 |
| ZW40-10-20 | 40 | 40 | 10 | 20 | 5.5 | 2.2 | 2900 | 3 | 45 | 2.5 | 15-20 | 85 |
| ZW40-20-15 | 40 | 40 | 20 | 15 | 5.5 | 2.2 | 2900 | 3 | 45 | 2.5 | 10-18 | 85 |
| ZW40-15-30 | 40 | 40 | 15 | 30 | 5.5 | 3 | 2900 | 3 | 48 | 2.5 | 24-30 | 105 |
SCOPE OF
APPLICATION
District Heating
HVAC System
Condensation System
Water Treatment System
Water Supply System
Municipal Engineering
