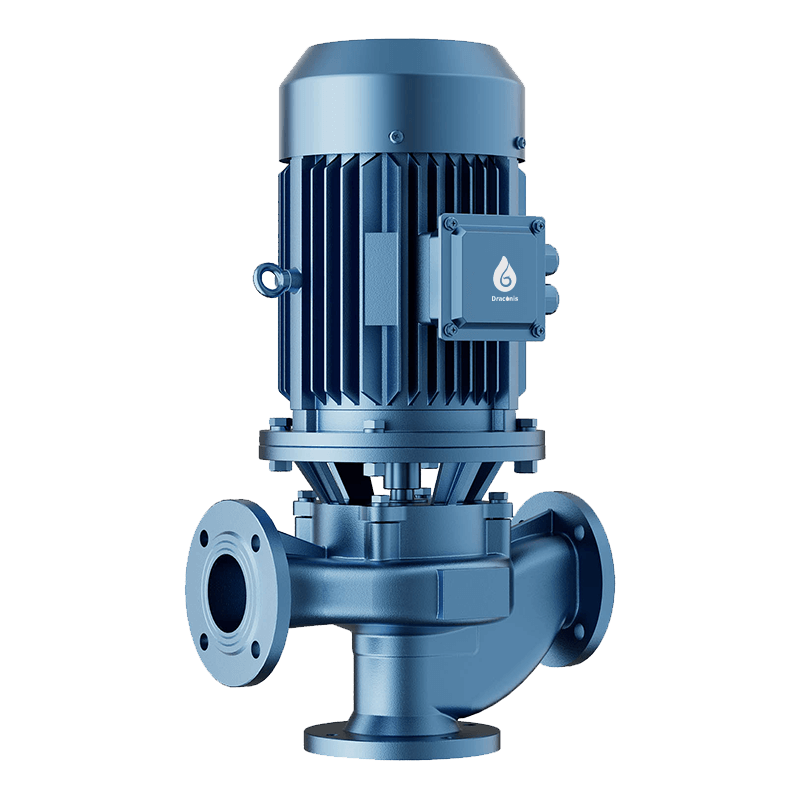

GW Vertical Pipeline Sewage Pump



DESCRIPTION

The GW series channel-type sewage pump is a new generation product developed byintegrating advanced foreign technology with domestic pump usage characteristics.



It offersenergy-saving benefits, prevents clogging, and effectively handles solid particles and long-fiber waste. The pump’s unique impeller design, along with a new mechanical seal, efficiently handles materials with solid bodies and long fibers. Its improved efficiency and balanced impeller minimize vibrations during operation.

flow: 8~400m3/h

Liquid temperature: -0°C~+80°C

Head Range: 7~60m

voltage: 220V/380V

Voltage can be customized based
on your request

Material: Cast Iron/Cast Steel/Stainless Steel

No.TypeCaliber(mm)Flow(m³/h)Head(m)Power(kW)Rotational Speed(r/min)Efficiency(%)Head range of use(m)
125GW7-18-0.75257180.75290038.513-18
225GW8-22-1.1258221.129003915-22
332GW12-15.1.13212151.129004012-15
440GW10-10-0.754010100.75290041.26-10
540GW10-15.1.14010151.129004312-15
640GW15-15-1.54015151.5290045.112-15
740GW15-25-2.24015252.229004622-25
840GW15-30-2.24015302.229004626-30
950GW20-7-0.75502070.752900544-7

SCOPE OF
APPLICATION

District Heating

HVAC System

Condensation System

Water Treatment System

Water Supply System

Municipal Engineering

Fire Fighting System
